Column Speaker
Enhance from tone quality to best by using KS speaker
- Robust aluminum and an ABS plastic or die-casting cover depending on model is used
- Easy to attach to/detach from a wall
- Built in a matching transformer
- Well fit with the surrounding environment indoors and outdoors
- Brackets are included
A high quality speaker, protective grill is used
- Input voltage : 100V line
- Be applied in conference rooms, auditoriums, lecture halls, warehouses, schools,community center etc.

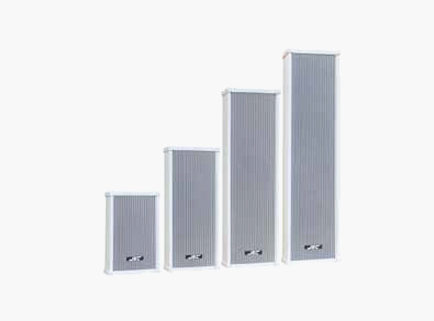

Specification
* 10W 5” built-in
Model | SJC-100 | SJC-200 | SJC-300 | SJC-400 |
Input Power | 10W | 20W | 30W | 40W |
Frequency | 150Hz ~ 14KHz | |||
Impedance | 1KΩ(10W), 2KΩ(5W) |
500Ω(20W), 1KΩ(10W) |
330Ω(30W), 660Ω(15W) |
250Ω(40W), 500Ω(20W) |
SPL(1W/1M) | 90dB | 92dB | 95dB | 96dB |
Materials | Aluminum case/ABS resin | Remark | white | |
Weight | 1.7Kg | 2.6Kg | 3.7Kg | 4.5Kg |
Dimensions (mm) |
150 x 118 x 240 | 150 x 118 x 368 | 150 x 118 x 508 | 150 x 118 x 605 |

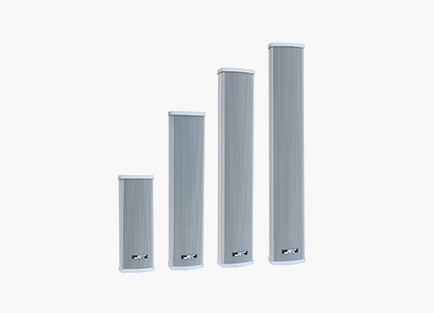

Specification
* Outdoor * 10W 5” built-in
Model | SJC-100WP | SJC-200WP | SJC-300WP | SJC-400WP |
Input Power | 10W | 20W | 30W | 40W |
Frequency | 150Hz ~ 14KHz | |||
Impedance | 1KΩ(10W), 2KΩ(5W) |
500Ω(20W), 1KΩ(10W) |
330Ω(30W), 660Ω(15W) |
250Ω(40W), 500Ω(20W) |
SPL(1w.1m) | 90dB | 92dB | 95dB | 96dB |
Materials | Aluminum case/ABS resin | |||
Color | Gray | |||
Weight | 1.7Kg | 2.6Kg | 3.7Kg | 4.5Kg |
Dimensions(mm) | 150 x 118 x 240 | 150 x 118 x 368 | 150 x 118 x 508 | 150 x 118 x 605 |

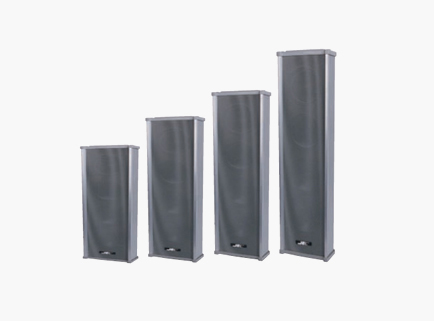

Specification
* 10W 5” built-in
Model | SJC-2010 | SJC-2020 | SJC-3030 | SJC-4040 |
Input Power | 10W | 20W | 30W | 40W |
Frequency | 150Hz ~ 14KHz | |||
Impedance | 1KΩ(10W), 2KΩ(5W) |
500Ω(20W), 1KΩ(10W) |
330Ω(30W), 660Ω(15W) |
250Ω(40W), 500Ω(20W) |
SPL(1w.1m) | 90dB | 92dB | 95dB | 96dB |
Materials | Aluminum case/die-casting cover | |||
Color | white | |||
Weight | 1.7Kg | 2.6Kg | 3.7Kg | 4.5Kg |
Dimensions(mm) | 147 x 126 x 235 | 147 x 126 x 345 | 147 x 126 x 500 | 147 x 126 x 610 |

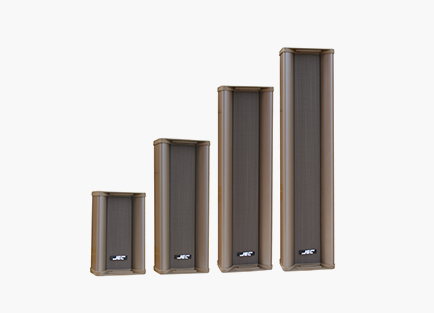

Specification
* Outdoor * 10W 5” built-in
Model | SJC-910 | SJC-920 | SJC-930 | SJC-940 |
Input Power | 10W | 20W | 30W | 40W |
Frequency | 150Hz ~ 13KHz | |||
Impedance | 1KΩ(10W), 2KΩ(5W) |
500Ω(20W), 1KΩ(10W) |
330Ω(30W), 660Ω(15W) |
250Ω(40W), 500Ω(20W) |
SPL(1w.1m) | 90dB | 92dB | 95dB | 96dB |
Materials | Aluminum case/ABS resin | |||
Color | Brown | |||
Weight | 1.6Kg | 2.5Kg | 3.4Kg | 4.2Kg |
Dimensions(mm) | 147 x 124 x 230 | 147 x 124 x 370 | 147 x 124 x 510 | 147 x 124 x 610 |

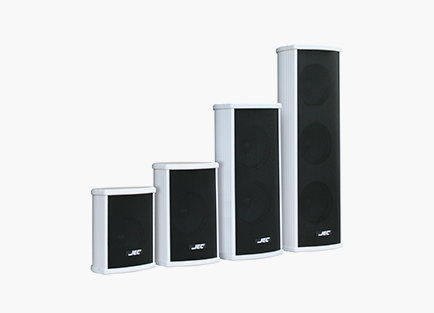

Specification
* Slim type * 3” speaker (5W)built-in
Model | SJC-710 | SJC-720 | SJC-730 | SJC-740 |
Input Power | 10W | 20W | 30W | 40W |
Frequency | 150Hz ~ 13KHz | |||
Impedance | 1KΩ(10W), 2KΩ(5W) |
500Ω(20W), 1KΩ(10W) |
330Ω(30W), 660Ω(15W) |
250Ω(40W), 500Ω(20W) |
SPL(1w.1m) | 94dB | 95dB | 96dB | 97dB |
Materials | Aluminum case/ABS resin | |||
Color | White | |||
Weight | 1.3Kg | 2.1Kg | 2.9Kg | 3.6Kg |
Dimensions(mm) | 113 x 90 x 295 | 113 x 90 x 475 | 113 x 90 x 665 | 113 x 90 x 835 |
